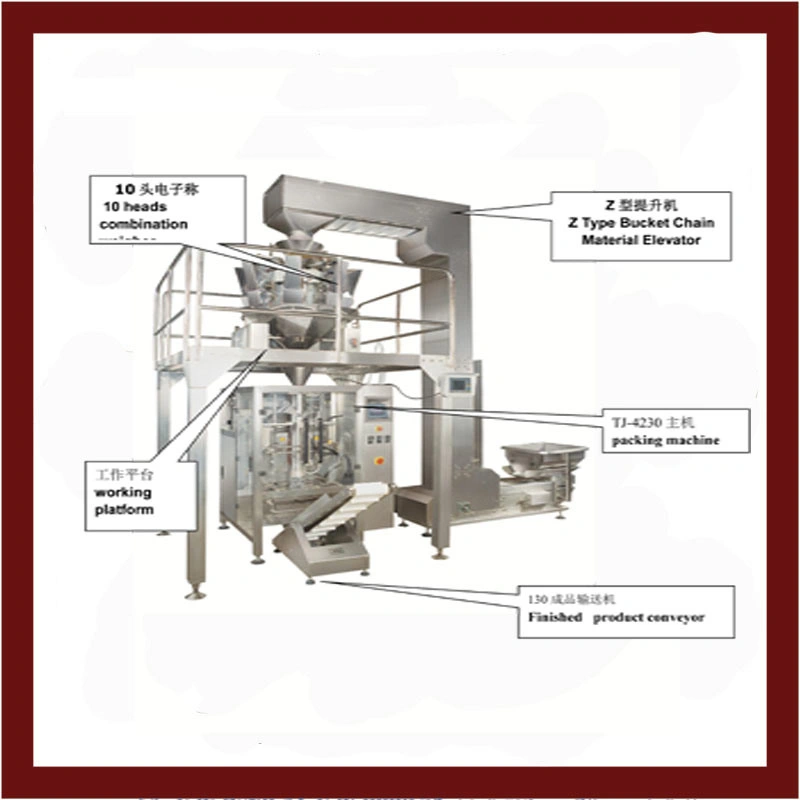

Shanghai Tj-4230 Combined Weigher Full Automatic Packing System
Suitable for automatic weight packaging requirement of various of material in piece and grains. Such as puffed food, potato chips, frozen foods, frozen foods, biscuits, dried fruits, pet food, hardware, and so on.
1. The computer weigher ensure the stable and accurate packaging weight.
2. Medium-speed and high-speed machine can be selected, meeting different production requirements.
3. The packaging machine can be equipped with a variety of functional options, such as Alphascope, punching etc.
4. The computer weigher can be installed with hopper as required and suitable for different material.
5. Each machine has stainless steel and carbon steel structures, suitable for all levels of the customers' requirements.
Specifications:
Suitable for automatic weight packaging requirement of various of material in piece and grains. Such as puffed food, potato chips, frozen foods, frozen foods, biscuits, dried fruits, pet food, hardware, and so on.
1. The computer weigher ensure the stable and accurate packaging weight.
2. Medium-speed and high-speed machine can be selected, meeting different production requirements.
3. The packaging machine can be equipped with a variety of functional options, such as Alphascope, punching etc.
4. The computer weigher can be installed with hopper as required and suitable for different material.
5. Each machine has stainless steel and carbon steel structures, suitable for all levels of the customers' requirements.
Specifications:
| Iteam | 10 heads combination weigher |
| Weighing weight | 1000g |
| Weighing weight | 10-800g |
| Weighing accuracy | ±0.3-1.5g |
| Max weighing capacity | 3000cc |
| Max weighing speed | 60/min |
| Product presets | 50 |
| Control parts | Fluorescent display tube |
| Model | Tj4230 |
| Bag size | (Length):80-300(mm) (Width):150-200(mm) |
| Packing speed | 5-60(bags)/(min) |
| Max film width | 420(mm) |
| Film thickness | 0.04-0.09(mm) |
| Pulling film type | dual belt tension membrane |
| Air consumption | 0.8Mpa 0.4m³/min |
| Power source | 2.2kw 220v 50Hz |
| Measuring range | Max2000ml |
| Dimension | (L)1500*(W)1140*(H)1540mm |
| Weight | 550kg |
